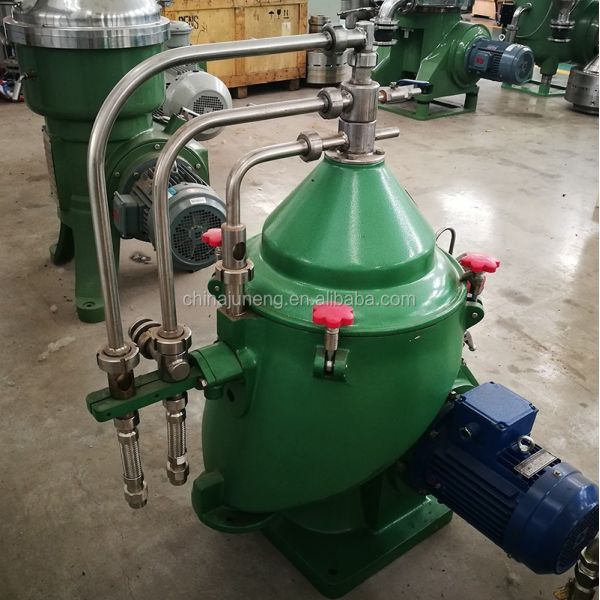

Solid-liquid Separation Marine diesel Oil (mdo) Separator

Name: Solidliquid Separation Marine diesel Oil mdo Separator
Brand: Juneng
Price: 10 USD

Quality Solid-liquid Separation Marine diesel Oil (mdo) Separator wholesale

Place of Origin : China

product type : mineral oil

video outgoing-inspection : Provided

machinery test report : Provided

core components : Motor

Brand Name : Juneng

voltage : 220V/380V/460V

power(w) : 4 Kw

dimension(l*w*h) : 720*800*1100 mm

warranty : 12 Months

key selling points : Easy To Operate

Capacity : 501-1000l/h, 2000 L/H

Weight (KG) : 500

setting speed : 4000 RPM

After-sales Service Provided : Field installation, commissioning and training

Structure : Stable Structure

Discharge : Automatic Discharge

Application : Liquid Solid Separation

ID of drum : 265mm

Drum Speed : Appro 8086 r/min

Inlet pressure : 0.05 Mpa

Certification : ISO, CE,BV

MOQ : 1 set

Price : $10,999-11,399 / set

Contact Now

Product Description

Product Application

The heavy diesel oil is separated by separator can replace the light diesel oil for using so that reduce the cost of production greatly.

The marine separator is mainly used for cleaning up the moisture and mechanical impurity in the fuel ( Light diesel oil, heavy diesel oil, fuel oil) and lubricating oil of ships and diesel engine, which is good to reduce the abrasion and prolong its service-life.

The design, manufacture and inspect are accord with GB/T5745-2002 << Marine Disk Separator>>. Stable operation, the vibration is much lower than the national standard value. All materials are made of stainless steel, so effectively reduce the corrosion of separation materials.

Application:

The marine separator is mainly used for cleaning up the moisture and mechanical impurity in the fuel ( Light diesel oil, heavy diesel oil, fuel oil) and lubricating oil of ships and diesel engine

Model	Rated Treatment capacity (L/h)	Inlet pressure (Mpa)	Outlet pressure(Mpa)
KYDR204DD-23	1500	≤0.05	≥0.2
KYDH204SD-23	2000	≤0.05	≥0.2
JOS10	3000	0.2	0.15-0.2

Solid-liquid Separation Marine diesel Oil (mdo) Separator

Main Features

1) There are stationary centripetal pumps for heavy phase and light phase output. Separated heavy phase and light phase are outputted respectively by the large and small centripetal pumps which on the top of the drum.

2) This series of separator outfits various specific gravity rings with different diameter, which can be selected and used according to the density and volume of the materials.

3) It has backpressure regulating valve. Separating effect can be regulated by regulating backpressure.

Certifications

In recent years, our company has introduced a series of advanced equipment including Filter, Separator, Decanter centrifuge and pump. In addition, we have obtained a plenty of certifications such as CE certificates, ASME U certificate and ISO 9001 certificate etc.

Company Profile

Jiangsu Juneng Machinery Co., Ltd in Yixing

We are professional in manufacturing disc separators and liquid pumps.If you would have any plan on these items,please feel free to contact us. We are happy to recommend the most suitable model for you.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Repair and maintain

Packing & Delivery

Packaging
Transport	Ocean shipping sea transportation transport by sea
Container	20'GP, 40'HC or Shipping LCL
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
